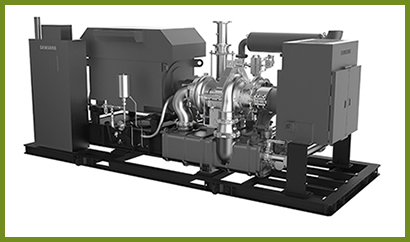

Compressors
Model |
SM3100 |
SM4100 |
SM5100 |
SM6100 |
SM7100 |
|
Flow Rate |
m3/hr |
3,300 ~ 5,500 |
5,500 ~ 9,000 |
9,000 ~ 15,000 |
15,000 ~ 24,500 |
24,500 ~ 32,000 |
CFM |
2,000 ~ 3,250 |
3,250 ~ 5,300 |
5,300 ~ 8,800 |
8,800 ~ 15,000 |
15,000 ~ 19,000 |
|
Power |
kW |
200 ~ 580 |
300 ~ 930 |
500 ~ 1,500 |
800 ~ 2,500 |
1,000 ~ 3,100 |
HP |
270 ~ 780 |
400 ~ 1,200 |
670 ~ 2,010 |
1,070 ~ 3,350 |
1,340 ~4,155 |
|
Discharge |
barA |
3.5 ~ 13 |
3.5 ~ 11.4 |
|||
Pressure |
PsiA |
50 ~ 188 |
50 ~ 165 |
|||
Dimension (LxWxH) |
mm |
3,640 x 1,892 x 1,980 |
3,890 × 1,870 × 2090 |
5,010 x 1,990 x 2,100 |
4,970 × 1,990 × 2,850 |
5,700 x 2,800 x 2,950 |
inch |
143 x 74 x 82 |
153 × 74 × 82 |
197 x 78 x 83 |
196 × 78 × 112 |
224 x 110 x 116 |
|
Packaged Type |
mm |
5,220 x 2,090 x 2,060 |
5,510 x 2,150 x 2,150 |
6,450 x 2,200 x 2,390 |
6,910 x 2,200 x 3,050 |
- |
inch |
217 x 82 x 81 |
217 x 84 x 84 |
254 x 87 x 94 |
272 x 87 x 120 |
- |
|
Weight |
Kg |
7,900 |
10,070 |
10,900 |
13,900 |
20,500 |
Packaged Type |
8,900 |
11,100 |
13,600 |
16,000 |
- |
|
