Fast, coordinated control for compressor changeover.
10RCC — Rapid Changeover Control — is E Care's controller for fast, coordinated response when switching or sequencing compressor operation, built on the same Surge Deviation logic described on our Controls page.
What 10RCC actually looks like.
Real screens from the panel — click through to see how each one supports running, tuning, and troubleshooting the compressor.

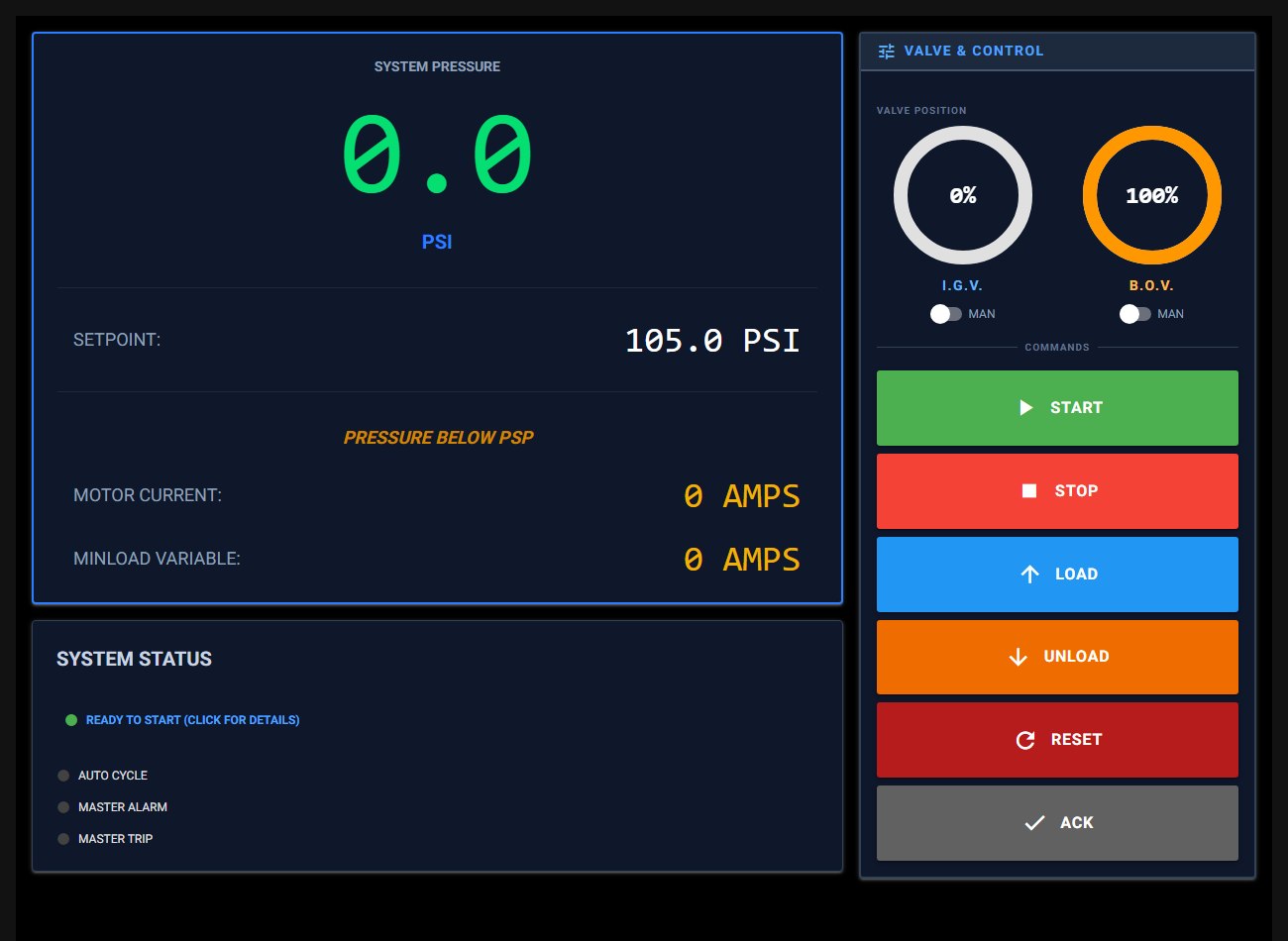

System Overview
The first screen an operator sees — live system pressure against setpoint and motor current, with a plain-language system status and the full command set always one tap away.
Built for fast, safe changeover
Surge Deviation Control
Defines the real surge point at zero deviation, throttling deeper before the bypass valve ever opens.
Live Process Flow
A real-time piping diagram of the 3-stage train, with bypass valve state visible at a glance.
Full I/O & Control
Every digital input/output and Start/Stop/Load/Unload/Reset command, live on the panel.
Tuning & Safety Setpoints
Every PID loop and safety threshold in one place — configurable without touching code.
Three coordinated PID loops
The ECC / 10RCC platform runs three Proportional-Integral-Derivative loops in parallel to keep the machine both safe and efficient:
- Bypass valve control — modulates the blow-off valve based on Surge Deviation to prevent surge without wasting more air than necessary.
- Inlet valve pressure control — regulates inlet guide vanes/valves to hold discharge or system pressure at setpoint.
- Motor current / Full Load Amp protection — continuously monitors motor current to protect the machine from overload conditions.
